Introduction

This is a developer-focused document for developing SkelForm runtimes.

This document is written under the assumption that a general-use runtime will be made and accounts for all features and cases, but need not be followed this way for personal runtimes.

Runtime APIs

Both generic and runtime sections are based on their public-facing API functions.

The functions within their sections need not be implemented, and simply exist to split their respective algorithms to be more easily digestible.

Example

All general-use generic runtimes must have an Animate() function that works as intended (interpolates bones & resets them if needed).

The Animate() function’s implementation is covered in its own section, and the functions within do not need to be public nor even implemented. All that matters is Animate() working as intended.

Pseudo Code

All code shown on this document is not meant to be run directly.

Some elements (eg; functions) will lead to their section if clicked.

The language used is Typescript, but with a few concessions:

• Number is replaced with Int or Float where appropriate
• Boolean shortened to Bool

File Structure

The editor exports a unique .skf file, which can be unzipped to reveal:

• armature.json - Armature data (bones, animations, etc)
• atlasX.png - Texture atlas(es), starting from 0
• editor.json - Editor-only data
• thumbnail.png - Armature preview image
• readme.md - Little note for runtime devs

This section will only cover the content in armature.json.

Table of Contents

• Armature
• Bones
• Animations
  • Keyframess
• Atlases
• Styles
  • Textures
• Visuals
  • Vertex
  • Bind
  • BindVert
• Inverse Kinematics
• Physics
• Initial Fields
• Constructed Bones

Armature

Bones

Inverse Kinematics

Inverse kinematics is stored in the root (first) bone of each set of IK bones.

Visuals

Visual data of each bone (texture & mesh)

Vertex

A mesh is defined by its vertices, which describe how each point is positioned, as well as how the texture is mapped (UV).

Bind

Meshes can have ‘binding’ bones to influence a set of vertices. These are the primary method of animating vertices.

BindVert

Vertices assigned to a bind.

Physics

Animations

Keyframes

Keyframes are defined by their element (what’s animated), as well as either value or value_str (what value to animate element to)

Eg: element: PosX with value: 20 means ‘Position X = 20 at frame’

Atlases

Easily-accessible information about texture atlas files.

Styles

Groups of textures.

Textures

Note: Coordinates are in pixels.

Initial Fields

Some fields in Bones, Visuals, Inverse Kinematics, and Physics have init_ counterparts. Their value is duplicated from the original field.

While the original field is modified during animation, init_ fields are used to return the original field back to its initial state (see ResetBones()).

Constructed Bones

An extra set of bones is recommended for optimization in the Construct() generic function. This is a clone of the bones array, but with construction applied to it for use later with Draw().

1. A variant of Vec4: (red, green, blue, alpha) ↩ ↩2 ↩3 ↩4

2. Transparent: (0, 0, 0, 0) ↩

3. White: (255, 255, 255, 255) ↩ ↩2 ↩3

4. See Initial Fields ↩ ↩2 ↩3

Generic Runtimes

Generic runtimes handle animations and armature construction.

These runtimes should be engine & render agnostic, with the ‘generic’ nature allowing it to be expandable to other environments.

Example: A generic Rust runtime can be expanded for Rust game engines like Macroquad or Bevy.

Animate()

Table of Contents

• Animate()
  • interpolateKeyframes()
  • interpolate()
    • Bezier Explanation
  • resetBones()

Animate()

Interpolates bone fields based on provided animation data, as well as initial states for non-animated fields.

function Animate(
    armature: Armature,
    anims: Animation[],
    frames: Int[],
    smoothFrames: Int[],
) {
    for (let a = 0; a < anims.length; a++) {
        for (let k = 0; k < anims[a].keyframes.length; k++) {
            let kf = anims[a].keyframes[k];

            // only prev keyframes are considered
            if (kf.frame > frames[a]) {
                break;
            }

            // refer keyframe to itself, if there's no next
            if (kf.next_kf == -1) {
                kf.next_kf = k;
            }

            const nextKf = anims[a].keyframes[kf.next_kf];

            // skip keyframe if it's not the last, and would not be animated
            const isLast = kf.next_kf == k;
            const isBeforeFrame = nextKf.frame < frames[a];
            if (isBeforeFrame && !isLast) {
                continue;
            }

            const f = frames[a];
            const sf = smoothFrames[a];

            // animate basic fields
            let bone = armature.bones[kf.bone_id];
            if (kf.element == "PositionX")
                interpolateKeyframes(bone.pos.x, kf, nextKf, f, sf);
            if (kf.element == "PositionY")
                interpolateKeyframes(bone.pos.y, kf, nextKf, f, sf);
            if (kf.element == "Rotation")
                interpolateKeyframes(bone.rot, kf, nextKf, f, sf);
            if (kf.element == "ScaleX")
                interpolateKeyframes(bone.scale.x, kf, nextKf, f, sf);
            if (kf.element == "ScaleY")
                interpolateKeyframes(bone.scale.y, kf, nextKf, f, sf);
            if (kf.element == "Hidden") bone.hidden = kf.value == 1;

            // animate visual fields
            if (bone.visuals_id != -1) {
                let visuals = armature.visuals[bone.visuals_id];

                if (kf.element == "Texture") visuals.tex = kf.value_str;
                if (kf.element == "TintR")
                    interpolateKeyframes(visuals.tint.r, kf, nextKf, f, sf);
                if (kf.element == "TintG")
                    interpolateKeyframes(visuals.tint.g, kf, nextKf, f, sf);
                if (kf.element == "TintB")
                    interpolateKeyframes(visuals.tint.b, kf, nextKf, f, sf);
                if (kf.element == "TintA")
                    interpolateKeyframes(visuals.tint.a, kf, nextKf, f, sf);
            }

            // animate inverse kinematics fields
            if (bone.ik_family_id != -1) {
                let ik = armature.inverse_kinematics[bone.ik_family_id];

                if (kf.element == "IkConstraint") ik.constraint = kf.value_str;
                if (kf.element == "MimicTarget")
                    ik.mimic_target = kf.value == 1;
            }
        }
    }

    // bones that are not being animated should return to their initial states
    resetBones(armature, anims, frames[0], smoothFrames[0]);
}

interpolateKeyframes()

With the provided animation frame, determines the keyframes to interpolate the field by.

The resulting interpolation from the keyframes is interpolated again for smoothing.

function interpolateKeyframes(
    field: Float,
    prevKf: Keyframe,
    nextKf: Keyframe,
    frame: Int,
    smoothFrame: Int,
): Float {
    const totalFrames = nextKf.frame - prevKf.frame;
    const currentFrame = frame - prevKf.frame;

    // interpolate from current to next keyframe value
    const result = interpolate(
        currentFrame,
        totalFrames,
        prevKf.value,
        nextKf.value,
        nextKf.start_handle,
        nextKf.end_handle,
    );

    // using the requested smoothing frames, interpolate the current field to the target value
    const z = { x: 0, y: 0 };
    return interpolate(currentFrame, smoothFrame, field, result, z, z);
}

interpolate()

Interpolation uses a modified bezier spline (explanation below).

Note that 2 helper functions are included below the main function.

function interpolate(
    current: Int,
    max: Int,
    startVal: Float,
    endVal: Float,
    startHandle: Vec2,
    endHandle: Vec2,
): Float {
    // snapping behavior for Snap transition preset
    if(startHandle.y == 999.0 && endHandle.y == 999.0) {
        return startVal;
    }
    if(max == 0 || current >= max) {
        return endVal;
    }

    // solve for t with Newton-Raphson
    const initial = current / max;
    let t = initial;
    for(let i = 0; i < 5; i++) {
        let x = cubicBezier(t, startHandle.x, endHandle.x);
        let dx = cubicBezierDerivative(t, startHandle.x, endHandle.x);
        if(Math.abs(dx) < 1e-5 {
            break;
        }
        t -= (x - initial) / dx;
        t = clamp(t, 0.0, 1.0);
    }

    const progress = cubic_bezier(t, startHandle.y, endHandle.y)
    return startVal + (endVal - startVal) * progress
}

// for both functions below, p0 and p3 are always 0 and 1 respectively

function cubicBezier(t: Float, p1: Float, p2: Float): Float {
    const u = 1. - t;
    return 3. * u * u * t * p1 + 3. * u * t * t * p2 + t * t * t;
}

function cubicBezierDerivative(t: Float, p1: Float, p2: Float): Float {
    const u = 1. - t;
    return 3. * u * u * p1 + 6. * u * t * (p2 - p1) + 3. * t * t * (1. - p2);
}

Bezier Explanation

Note: the following explanation is incomplete, as it doesn’t include Newton-Rapshon. However, understanding this is not required to implement the code above.

A Primer on Bezier Curves

The bezier spline uses the following polynomial:

value =
    a * (1 - t)^3 +
    b * 3 * (1 - t)^2 * t +
    c * 3 * (1 - t) * t^2 +
    d * t^3

This can be simplified into 4 points:

The above is for a generic bezier spline, however.

In interpolation, startVal and endVal should be 0 and 1 respectively to represent 0% to 100% of the end value. This allows the algorithm to have a persistent curve regardless of the actual values being interpolated.

Simplified points:

Notice that h00 is now gone, as its coefficient, startVal, is always 0 and would have no effect on the algorithm.

The actual start and end values are applied at the end:

progress = h10 * startHandle + h01 * endHandle + h11
value = start + (end - start) * progress

resetBones()

Animate bones back to their initial states, if they’re not being animated.

This makes use of each bones’ init_ fields (init_pos, init_rot, etc).

Example: animation 1 was played and rotated the arm bone, but animation 1 is not being played anymore. That arm bone must now return to its initial rotation.

function resetBones(
    armature: Armature, animations: Animation[], frame: Uint, smoothFrame: Uint
) {
    let elementMap = {}

    // add every element that's being animated for each bone
    anims.forEach(anim => {
        anim.keyframes.forEach(kf => {
            if(!elementMap[kf.bone_id].contains(kf.element)) {
                elementMap[kf.bone_id].push(kf.element)
            }
        })
    jj

    const f = frame;
    const sf = smoothFrame;

    // reset every element that's not in the map back to its initial state
    armature.bones.forEach(bone => {

        // reset basic fields
        if (!elementMap[bone.id]["PositionX"])
            interpolate(f, sf, bone.pos.x, bone.init_pos.x, z, z)
        if (!elementMap[bone.id]["PositionY"])
            interpolate(f, sf, bone.pos.y, bone.init_pos.y, z, z)
        if (!elementMap[bone.id]["Rotation"])
            interpolate(f, sf, bone.rot, bone.init_rot, z, z)
        if (!elementMap[bone.id]["ScaleX"])
            interpolate(f, sf, bone.scale.x, bone.init_scale.x, z, z)
        if (!elementMap[bone.id]["ScaleY"])
            interpolate(f, sf, bone.scale.y, bone.init_scale.y, z, z)
        if (!elementMap[bone.id]["Hidden"])
            bone.hidden = bone.init_hidden

        // reset visual fields
        if bone.visuals_id != -1 {
            let visuals = armature.visuals[bone.visual_id]

            if (!elementMap[bone.id]["Texture"])
                visuals.tex = visuals.init_tex;
            if (!elementMap[bone.id]["TintR"])
                interpolate(f, sf, visuals.tint.r, visuals.init_tint.r, z, z)
            if (!elementMap[bone.id]["TintG"])
                interpolate(f, sf, visuals.tint.g, visuals.init_tint.g, z, z)
            if (!elementMap[bone.id]["TintB"])
                interpolate(f, sf, visuals.tint.b, visuals.init_tint.b, z, z)
            if (!elementMap[bone.id]["TintA"])
                interpolate(f, sf, visuals.tint.a, visuals.init_tint.a, z, z)
        }

        // reset inverse kinematics fields
        if (bone.ik_family_id != -1) {
            let ik = armature.inverse_kinematics[bone.ik_family_id]

            if (!elementMap[bone.id]["IkConstraint"])
                ik.constraint = ik.init_constraint;
            if (!elementMap[bone.id]["MimicTarget"])
                ik.mimic_target = ik.init_mimic_target;
        }]
    })
}

Note: most runtimes will have this functionality at the end of Animate(). The separation of functions is purely for documentation purposes.

Construct()

Table of Contents

• Construct()
  • inheritance()
  • resetInheritance()
  • inverseKinematics()
    • pointBones()
    • applyConstraints()
    • fabrik()
    • arcIk()
  • simulatePhysics()
  • constructVerts()
    • inheritVert()
    • Pathing Explained

Construct()

Constructs the armature’s bones with inheritance and inverse kinematics.

function Construct(armature: Armature) {
    let constBones = armature.constructed_bones;

    // initialize constructed_bones
    if (constBones == undefined) {
        constBones = clone(armature.bones);
    } else {
        // constructed_bones may have been used later for drawing
        // which sorts them by zindex, so sort back by id
        constBones.sort((bone) => bone.id);
    }

    // 1st inheritance pass
    resetInheritance(constBones, armature.bones);
    inheritance(constBones, {}, []);

    // 2nd inheritance pass: inverse kinematics
    if (armature.inverse_kinematics.length > 0) {
        let ikRots = inverseKinematics(constBones, armature.inverse_kinematics);
        resetInheritance(constBones, armature.bones);
        inheritance(constBones, ikRots, []);
    }

    // 3rd inheritance pass: physics
    if (armature.physics.length > 0) {
        simulatePhysics(constBones, armature.physics);
        resetInheritance(aramture.constructed_bones, armature.bones);
        inheritance(constBones, ikRots, armature.physics);
    }

    // mesh deformation
    constructVerts(constBones, armature.visuals);
}

inheritance()

Applies parent bone properties to their children.

function inheritance(bones: Bone[], ikRots: Object, physics: Physics[]) {
    for (let b = 0; b < bones.length; b++) {
        if (bones[b].parent_id != -1) {
            const parent: Bone = bones[bones[b].parent_id];

            let orbitRot = bones[bones[b].parent_id as usize].rot;

            // apply orbital difference, if rotation resistance physics is active
            let phys = physics[bones[b].physics_id];
            if (phys != undefined && phys.sway > 0) {
                orbitRot -= phys.global_orbit_diff;
            }
            bones[b].rot += orbitRot;

            bones[b].scale *= parent.scale;

            // adjust child's distance from player as it gets bigger/smaller
            bones[b].pos *= parent.scale;

            // rotate child around parent as if it were orbitting
            bones[b].pos = rotateVec2(bones[b].pos, parent.rot);

            bones[b].pos += parent.pos;
        }

        // override bone's rotation from inverse kinematics
        if (ikRots.get(bones[b].id)) {
            bones[b].rot = ikRots.get(bones[b].id);
        }

        // apply physics, if armature_bones is provided
        let phys = physics[bones[b].physics_id];
        if (phys != undefined) {
            if (phys.rot_damping > 0) {
                bones[b].rot = phys.global_rot;
            }
            if (phys.pos_damping > 0) {
                bones[b].pos = phys.global_pos;
            }
            if (phys.scale_damping > 0) {
                bones[b].scale = phys.global_scale;
            }
        }
    }
}

resetInheritance()

Resets the provided constructed_bones to their original transforms.

Must always be called before inheritance().

resetInheritance(constructedBones: Bone[], bones: Bone[]) {
    for(let b = 0; b < bones.length; b++) {
        constructedBones[b].pos = bones[b].pos;
        constructedBones[b].rot = bones[b].rot;
        constructedBones[b].scale = bones[b].scale;
    }
}

inverseKinematics()

Processes inverse kinematics and returns the final bones’ rotations, which would later be used by inheritance().

IK data for each set of bones is stored in the root bone, which can be iterated wth inverse_kinematics.

function inverseKinematics(
    bones: Bone[],
    inverseKinematics: InverseKinematics[],
): Map<Int, Float> {
    let ikRots = new Map<Int, Float>();

    for (let family of inverseKinematics) {
        // get relevant bones from the same set
        if (family.target_id == -1) {
            continue;
        }
        const root: Vec2 = bones[family.bone_ids[0]].pos;
        const target: Vec2 = bones[family.target_id].pos;
        let familyBones: Bone[] = bones.filter((bone) =>
            family.bone_ids.contains(bone.id),
        );

        // determine which IK mode to use
        switch (family.mode) {
            case "FABRIK":
                for (let i = 0; i < 10; i++) {
                    fabrik(familyBones, root, target);
                }
            case "Arc":
                arcIk(familyBones, root, target);
        }

        pointBones(bones, family);
        applyConstraints(bones, family);

        // add rotations to ikRot, with bone ID being the key
        for (let b = 0; b < family.bone_ids.length; b++) {
            // last bone of IK should have free rotation
            if (b == family.bone_ids.length - 1) {
                continue;
            }
            ikRots.set(family.bone_ids[b].id, bones[family.bone_ids[b]].rot);
        }
    }

    return ikRots;
}

pointBones()

Point each bone toward the next one.

Used by inverseKinematics() to get the final bone’s rotations.

function pointBones(bones: Bone[], family: InverseKinematics) {
    let endBone: Bone = bones[family.bone_ids[-1]];
    let tipPos: Vec2 = endBone.pos;
    for (let i = family.bone_ids.length - 1; i > 0; i--) {
        const bone = bones[family.bone_ids[i]];
        if (i == family.bone_ids.length - 1) {
            // end bone should follow target bone rotation, if mimic_target is true
            if (family.mimic_target) {
                bone.rot = bones[family.target_id].rot;
            }
            continue;
        }
        const dir: Vec2 = tipPos - bone.pos;
        bone.rot = atan2(dir.y, dir.x);
        tipPos = bone.pos;
    }
}

applyConstraints()

Applies constraints to bone rotations (clockwise or counter-clockwise).

1. Get angle of first joint
2. Get angle from root to target
3. Compare against the 2 based on the constraint
4. If the constraint is satisfied, apply rot + baseAngle * 2 to bone rotation

function applyConstraints(bones: Bone[], family: InverseKinematics) {
    const jointDir: Vec2 = normalize(bones[family.bone_ids[1]].pos - root);
    const baseDir: Vec2 = normalize(target - root);
    const dir: Float = jointDir.x * baseDir.y - baseDir.x * jointDir.y;
    const baseAngle: Float = atan2(baseDir.y, baseDir.x);
    const cw: Bool = family.constraint == "Clockwise" && dir > 0;
    const ccw: Bool = family.constraint == "CounterClockwise" && dir < 0;
    if (ccw || cw) {
        family.bone_ids.forEach((id) => {
            bones[id].rot = -bones[id].rot + baseAngle * 2;
        });
    }
}

fabrik()

The FABRIK mode (Forward And Backward Reaching Inverse Kinematics).

Note that this should be run multiple times for higher accuracy (usually 10 times).

Source for algorithm: Programming Chaos’ FABRIK video

function fabrik(bones: Bone[], root: Vec2, target: Vec2) {
    // forward-reaching
    let nextPos: Vec2 = target;
    let nextLength: Float = 0.0;
    for (let b = bones.length - 1; b > 0; b--) {
        let length: Vec2 = normalize(nextPos - bones[b].pos) * nextLength;
        if (isNaN(length)) length = Vec2(0, 0);
        if (b != 0) nextLength = magnitude(bones[b].pos - bones[b - 1].pos);
        bones[b].pos = nextPos - length;
        nextPos = bones[b].pos;
    }

    // backward-reaching
    let prevPos: Vec2 = root;
    let prevLength: Float = 0.0;
    for (let b = 0; b < bones.length; b++) {
        let length: Vec2 = normalize(prevPos - bones[b].pos) * prevLength;
        if (isNaN(length)) length = Vec2(0, 0);
        if (b != bones.length - 1)
            prevLength = magnitude(bones[b].pos - bones[b + 1].pos);
        bones[b].pos = prevPos - length;
        prevPos = bones[b].pos;
    }
}

arcIk()

Arcing IK mode.

Bones are positioned like a bending arch, with the max length being the combined distance of each bone after the other.

function arcIk(bones: Bone[], root: Vec2, target: Vec2) {
    // determine where bones will be on the arc line (ranging from 0 to 1)
    let dist: Float[] = [0];

    const maxLength: Vec2 = magnitude(bones[-1].pos - root);
    let currLength: Float = 0;
    for (let b = 1; b < bones.length; b++) {
        const length: Float = magnitude(bones[b].pos - bones[b - 1].pos);
        currLength += length;
        dist.push(currLength / maxLength);
    }

    const base: Vec2 = target - root;
    const baseAngle: Float = base.y.atan2(base.x);
    const baseMag: Float = magnitude(base).min(maxLength);
    const peak: Float = maxLength / baseMag;
    const valley: Float = baseMag / maxLength;
    for (let b = 1; b < bones.length; b++) {
        bones[b].pos = new Vec2(
            bones[b].pos.x * valley,
            root.y + (1.0 - peak) * sin(dist[b] * PI) * baseMag,
        );

        const rotated: Float = rotateVec2(bones[b].pos - root, baseAngle);
        bones[b].pos = rotated + root;
    }
}

simulatePhysics()

Processes all physics:

• Position (physics.pos_damping)
• Scale (physics.scale_damping)
• Rotation (physics.rot_damping)
• Sway (physics.sway)
• Bounce (physics.rot_bounce)

function simulatePhysics(constructedBones: Bone[], physics: Physics[]) {
    for(let b = 0; b < constructed_bones.length; b++) {
        if constructedBones[b].physics_id == -1 {
            continue;
        }
        let physics = physics[constructedBones[b].physics_id as usize];

        const s = Vec2(0.3, 0.3);
        const e = Vec2(0.6, 0.6);
        const constBone = constructedBones[b];
        const prevPos = physics.global_pos;

        // interpolate position
        if(physics.pos_damping > 0 || physics.sway > 0) {
            let damping = Vec2(physics.pos_damping, physics.pos_damping)

            // ratio
            if(physics.pos_ratio < 0) {
                damping.y *= 1. - Math.abs(physics.pos_ratio);
            } else if(physics.pos_ratio > 0) {
                damping.x *= 1. - physics.pos_ratio;
            }

            let phys_pos = physics.global_pos;
            phys_pos.x = interpolate(2, damping.x, phys_pos.x, constBone.pos.x, s, e);
            phys_pos.y = interpolate(2, damping.y, phys_pos.y, constBone.pos.y, s, e);
        }

        // interpolate scale
        if(physics.scale_damping > 0) {
            let damping = Vec2(physics.scale_damping, physics.scale_damping);

            // ratio
            if(physics.scale_ratio < 0) {
                damping.y *= 1. - Math.abs(physics.scale_ratio)
            } else if(physics.pos_ratio > 0) {
                damping.x *= 1. - physics.scale_ratio
            }

            let physScale = physics.global_scale;
            physScale.x = interpolate(2, damping.x, physScale.x, constBone.scale.x, s, e);
            physScale.y = interpolate(2, damping.y, physScale.y, constBone.scale.y, s, e);
        }

        // interpolate rotation
        if(physics.rot_damping > 0) {
            const rot = shortest_angle_delta(physics.global_rot, constBone.rot)
            physics.global_rot += rot / physics.rot_damping
        }

        // interpolate parent orbit (rot res, bounce, etc)
        const parent = constructed_bones.find(b => b.id == constBone.parent_id)
        if(physics.sway > 0 && parent != undefined) {
            // 1. get the raw orbit angle between this bone and its parent
            const diff = normalize(constBone.pos - parent.pos)
            const diffAngle = Math.atan2(diff.y, diff.x)

            // 2. interpolate current orbit angle to raw angle
            let orbitBuffer = shortest_angle_delta(physics.global_orbit, diffAngle)

            // 3. apply bounce to orbit angle
            if(physics.rot_bounce > 0 && physics.rot_bounce <= 1) {
                orbitBuffer += physics.global_orbit_vel / (2 - physics.rot_bounce)
                physics.global_orbit_vel = orbitBuffer
            }

            // 4. apply orbit buffer
            physics.global_orbit += orbitBuffer / 10

            // 5. swing orbit based on position momentum
            const vel = normalize(physics.global_pos - prevPos)
            const angle = Math.atan2(-vel.y, -vel.x)
            const velRot = shortest_angle_delta(physics.global_orbit, angle)
            const strength = magnitude(physics.global_pos - prevPos) / 1000
            physics.global_orbit += velRot * strength * physics.sway

            // 6. apply difference in raw angle and orbit
            physics.global_orbit_diff = diffAngle - physics.global_orbit
        }
    }
}

constructVerts()

Constructs vertices, for bones with mesh data.

Note: a helper function (inheritVert()) is included in the code block below

function constructVerts(bones: Bone[], visuals: Visuals[]) {
    for(let b = 0; b < bones.length; b++) {
        if bones[b].visuals_id == -1 {
            continue;
        }
        let visual = visuals[bones[b].visuals_id];

        const bone: Bone = bones[b]

        // Move vertex to main bone.
        // This will be overridden if vertex has a bind.
        for(let v = 0; v < visual.vertices.length; v++) {
            visual.vertices[v].pos = visual.vertices[v].init_pos;
            visual.vertices[v] = inheritVert(visual.vertices[v].pos, bone, visual)
        }

        for(let bi = 0; bi < visual.binds.length; bi++) {
            let boneId = visual.binds[bi].bone_id
            if boneId == -1 {
                continue;
            }
            bindBone: Bone = bones.find(bone => bone.id == bId))
            bind: Bind = visual.binds[bi]
            for(let v = 0; v < bind.verts.length; v++) {
                id: Int = bind.verts[v].id

                if !bind.isPath {
                    // weights
                    const vert: Vertex = visual.vertices[id]
                    const weight: Float = bind.verts[v].weight
                    const endPos: Vec2 = inheritVert(vert.init_pos, bindBone) - vert.pos
                    vert.pos += endPos * weight
                    continue
                }

                // pathing

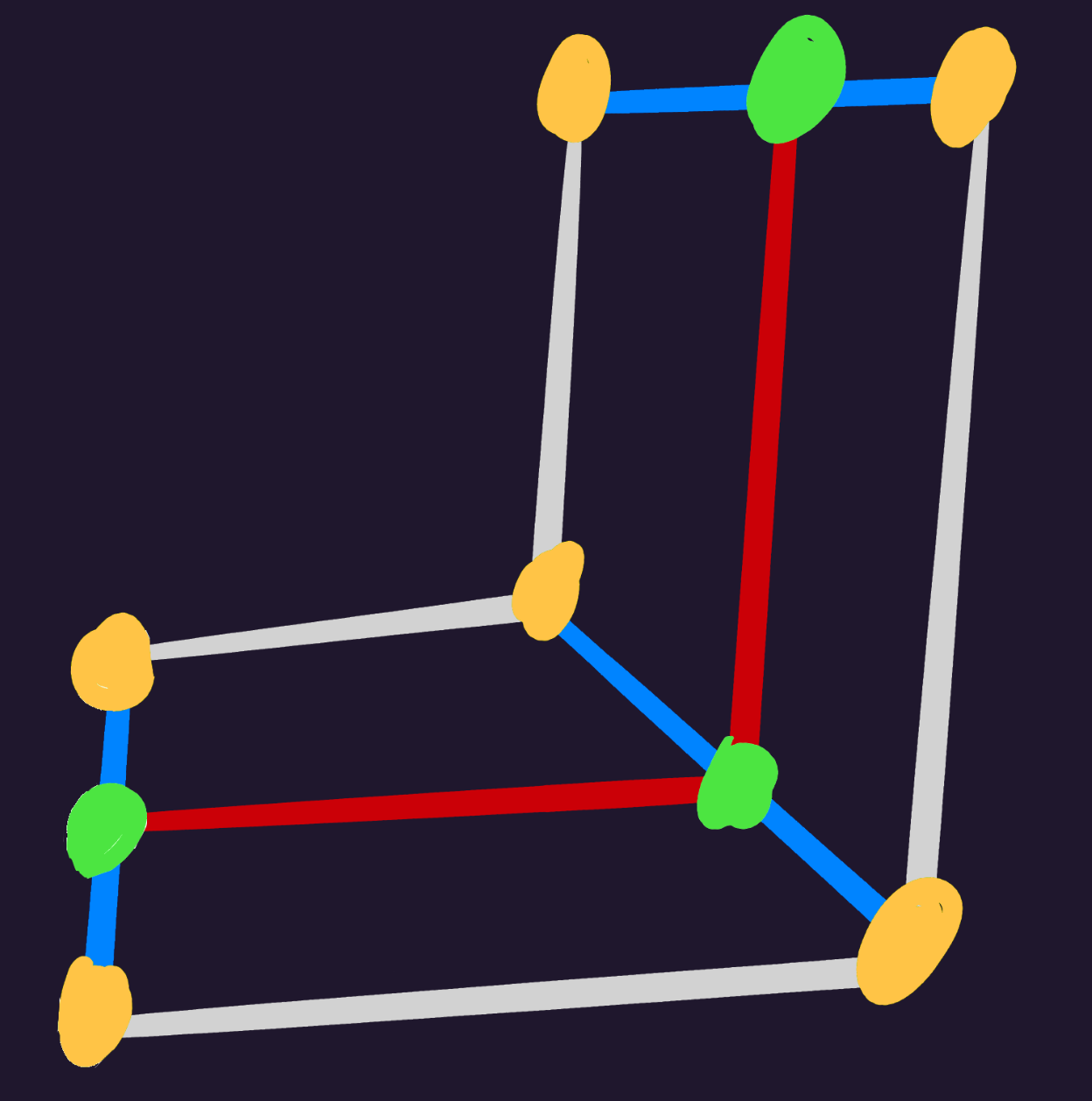

                // Check out the 'Pathing Explained' section below for a
                // comprehensive explanation.

                // 1.
                // get previous and next bind
                const prev: Int = bi > 0 ? bi - 1 : bi;
                const next: Int = min(bi + 1, visual.binds.length - 1);
                const prevBone: Bone = bones.find(bone => bone.id == visual.binds[prev].bone_id);
                const nextBone: Bone = bones.find(bone => bone.id == visual.binds[next].bone_id);

                // 2.
                // get the average of normals between previous and next bind
                const prevDir: Vec2 = bindBone.pos - prevBone.pos;
                const nextDir: Vec2 = nextBone.pos - bindBone.pos;
                const prevNormal: Vec2 = normalize(Vec2.new(-prevDir.y, prevDir.x));
                const nextNormal: Vec2 = normalize(Vec2.new(-nextDir.y, nextDir.x));
                const average: Vec2 = prevNormal + nextNormal;
                const normalAngle: Float = atan2(average.y, average.x);

                // 3.
                // move vert to bind, then rotate it around bind by normalAngle
                const vert: Vertex = visual.vertices[id];
                vert.pos = vert.initPos + bindBone.pos;
                const rotated: Vec2 = rotateVec2(vert.pos - bindBone.pos, normalAngle);
                vert.pos = bindBone.pos + (rotated * bind.verts[v].weight);
                visual.vertices[id] = vert;
            }
        }
    }
}

inheritVert()

Retruns a vertex’s new position with applied bone and visual data inheritance.

function inheritVert(pos: Vec2, bone: Bone, visual: Visual): Vec2 {
    pos *= bone.scale * visuals.pivot_scale;
    pos = rotateVec2(pos, bone.rot + visuals.pivot_rot);
    pos += bone.pos;
    return pos;
}

Pathing Explained

Instead of inheriting binds directly, vertices can be set to follow its bind like a line forming a path:

• Green - bind bone
• Orange - vertices
• Red - imaginary line from bind to bind
• Blue - Normal surface of imaginary line

Vertices will follow the path, distancing from the bind based on its surface angle and initial position from vertex to bind.

The following steps can be iterated per bind:

1. Get Adjacent Binds

To form the imaginary line, get the adjacent binds just before and just after the current bind. In particular:

• If current bind is first: get only next bind
• If current bind is last: get only previous bind
• If current bind is neither: get both previous and next bind

2. Get Average Normal Angle

Notice that in the diagram, the middle bind’s surface is at a 45° angle.

To do so:

1. Get line from previous to current bind
2. Get line from current to next bind
3. Add up both lines
4. Get angle of combined line

3. Rotate Vertices

1. Reset vertex position to its initial position + bind position
2. Rotate vertex around bind with angle from 2nd step

GetBoneTexture()

Helper function to provide the final Texture that a bone will use, based on the provided tex name and styles.

function GetBoneTexture(boneTex: String, styles: Style[]): Texture {
    styles.forEach(style => {
        const tex: Texture = style.textures.find(tex => tex.name == boneTex);
        if(tex != undefined) {
            return tex;
        }
    });
    return undefined;
}

FormatFrame()

Provides the appropriate frame based on the animation, along with looping and reverse options.

function FormatFrame(
    frame: Int,
    animation: Animation,
    reverse: Bool,
    isLoop: Bool,
): Int {
    const lastFrame: Int = animation.keyframes[-1].frame;

    if (isLoop) {
        frame %= lastFrame + 1;
    }

    if (reverse) {
        frame = lastFrame - frame;
    }

    return frame;
}

TimeFrame()

Provides the appropriate frame based on time given (as duration).

The implementation of time is highly dependent on the language and environment, but any conventional method should do.

If better suited, this function can be re-implemented for engine runtimes.

function TimeFrame(
    time: Time,
    animation: Animation,
    reverse: Bool,
    isLoop: Bool,
): Int {
    const elapsed: Float = time.asMillis() / 1e3;
    const frametime: Float = 1.0 / animation.fps;

    let frame: Int = elapsed / frametime;
    frame = formatFrame(frame, animation, reverse, isLoop);

    return frame;
}

IsFacingLeft()

Returns true if either X or Y of the provided scale is negative (but not both).

Used in engine Construct() and Draw() to flip bones or pivots if necessary.

function IsFacingLeft(scale: Vec2): Bool {
    const both: Bool = scale.x < 0 && scale.y < 0;
    const either: Bool = scale.x < 0 || scale.y < 0;
    return either && !both;
}

RotateVec2()

Helper for rotating a Vec2.

Used in generic Construct() and Draw() to rotate bones and pivots.

function RotateVec2(point: Vec2, rot: float): Vec2 {
    return Vec2 {
        x: point.x * rot.cos() - point.y * rot.sin(),
        y: point.x * rot.sin() + point.y * rot.cos(),
    }
}

Engine Runtimes

Engine runtimes handle specific environments such as loading and drawing, and must have a friendly user-facing API.

These runtimes may depend on a generic one to do the heavy lifting, leaving it to handle features that are best dealt with the engine (eg; rendering).

Example: The Macroquad runtime depends on a generic Rust runtime, and takes care of drawing the bones with Macroquad after animation logic has processed.

Load() - Engine

Reads a SkelForm file (.skf) and loads its armature and textures.

The below example assumes Texture2D is the engine-specific texture object.

function Load(zipPath: String): (Armature, Texture2D[]) {
    const zip: Zip = ZipLib.open(zipPath);
    const armatureJson: String = zip.byName("armature.json");

    const armature: Armature = Json.new(armatureJson);

    let textures: Texture2D[];
    armature.atlases.forEach(atlas => {
        Image img = zip.byName(atlas.filename);
        textures.push(Texture2D(img));
    })

    return (armature, textures);
}

Animate() - Engine

Simply calls Animate() from the generic runtime.

function animate(
    armature: Armature,
    animations: Animation[],
    frames: Int[],
    smoothFrames: Int[],
) {
    GenericRuntime.animate(armature, animations, frames, smoothFrames);
}

Construct() - Engine

Calls Construct() from the generic runtime, then modifies constructed bones based on user options and engine quirks.

ConstructOptions {
    position: Vec2,
    scale: Vec2,
    velocity: Vec2,
}

function Construct(armature: Armature*, options: ConstructOptions): Bone[] {
    // this will modify armature.constructed_bones, as well as armature.bones for physics fields
    GenericRuntime.construct(armature)

    for(let b = 0; b < armature.bones.length; b++) {
        let const_bone = armature.constructed_bones[b];

        // engine quirks like negative Y or reversed rotations can be applied here
        const_bone.pos.y = -const_bone.pos.y;
        const_bone.rot   = -const_bone.rot;

        // apply user options
        const_bone.scale *= options.scale;
        const_bone.pos   *= options.scale;
        const_bone.pos   += options.position;

        // flip bone if it's facing left
        if(isFacingLeft(options.scale)) {
            bone.rot = -bone.rot;
        }

        // velocity only affects position for physics
        if(const_bone.physics_id != -1) {
            let physics = armature.physics[const_bone.physics_id];
            physics.global_pos -= options.velocity;
        }

        // engine quirks & user options applied to vertices
        if(const_bone.visuals_id != -1) {
            let visuals = armature.physics[const_bone.visuals_id];
            visuals.vertices.forEach(vert => {
                vert.pos.y = -vert.pos.y;
                vert.pos   *= options.scale;
                vert.pos   += options.position;
            })
        }
    }
}

Draw()

Uses the bones from Construct() (usually armature.constructed_bones) to draw the armature.

Propagated visibility is handled via a fixed Bool array.

function Draw(
    bones: Bone[],
    visuals: Visuals[],
    atlases: Texture2D[],
    styles: Style[],
) {
    // bones with higher zindex should render first
    bones.sort((a, b) => {
        if (a.visuals_id == -1 || b.visuals_id == -1) {
            return -1;
        }
        const visualsA = visuals[a.visual_id];
        const visualsB = visuals[b.visual_id];
        return visualsA.zindex - visualsB.zindex;
    });

    // initialize a fixed array of false, for propagated visibility
    let hiddens = new Array(bones.length).fill(false);

    for (let bone of bones) {
        if (bone.visuals_id == -1) {
            continue;
        }
        const visual = visuals[bone.visual_id];

        // save this bone's hidden status so it can be propagated to its children,
        // and ignore rendering if it's hidden
        let hidden = bone.hidden || false;
        if (bone.parent_id != -1 && hiddens[bone.parent_id]) {
            hidden = true;
        }
        hiddens[b] = hidden;
        if (hidden) {
            continue;
        }

        // get active texture
        const tex: Texture = GenericRuntime.getBoneTexture(visual.tex, styles);
        if (!tex) {
            continue;
        }

        // will be used to flip pivots if necessary
        let dir = isFacingLeft(bone.scale) ? -1 : 1;

        // setup pivot
        let pivotPos = visual.pivot_pos * tex.size;
        pivotPos = rotateVec2(pivotPos, bone.rot * dir);
        pivotPos *= bone.scale * visual.pivot_scale;
        // invert Y if engine is -Y
        pivotPos.y = -pivotPos.y;

        // use tex.atlasIdx to get the atlas that this texture is in
        const atlas = atlases[tex.atlasIdx];

        // crop the atlas to the texture
        // here, clip() is assumed to be a texture clipper that takes:
        // (image, top_left, bottom_right)
        // do what is best for the engine
        const realTex = clip(atlas, tex.offset, tex.size);

        // render bone as mesh
        if (visual.vertices.length > 0) {
            drawMesh(bone, visual, tex, realTex);
            continue;
        }

        // A lot of game engines have a non-center sprite origin.
        // In this case, the origin is top-left of the sprite.
        // SkelForm uses center origin, so it must be adjusted like so.
        const pushCenter: Vec2 = (tex.size / 2) * bone.scale;

        let finalRot: Float = bone.rot + visual.pivot_rot * dir;
        let finalScale: Vec2 = bone.scale * visual.pivot_scale;

        // render bone as regular rect.
        // Assume this is a draw function that takes (texture, pos, rot, scale)
        drawTexture(
            realTex,
            bone.pos + pivotPos - pushCenter,
            finalRot,
            finalScale,
        );
    }
}

FormatFrame()

Simply calls FormatFrame() from the generic runtime.

function FormatFrame(
    frame: Int,
    animation: Animation,
    reverse: Bool,
    isLoop: Bool,
) {
    GenericRuntime.formatFrame(frame, animation, reverse, isLoop);
}

TimeFrame()

Either calls TimeFrame() from the generic runtime, or is re-implemented to better fit the engine/environment that the runtime is made for.

function TimeFrame(
    time: Time,
    animation: Animation,
    reverse: Bool,
    isLoop: Bool,
) {
    GenericRuntime.timeFrame(time, animation, reverse, isLoop);

    // or, copy it's implementation with a more appropriate Time type from the engine
}
